eVECTORS System Model

eVECTORS System Model is the essential to understand the project missions, the architecture and all functional requirements.

The Capella model is interfacing with several other software to centralize all project data (see following scheme).

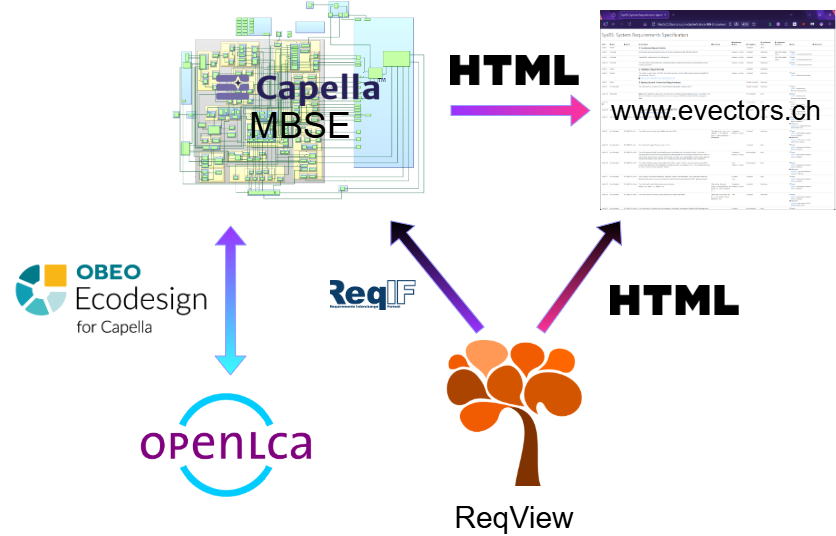

Model based software architecture

eVECTORS System Model is also used to compute the environmental impact.

The Physical Architecture Diagram gives a good overview of all physical components of MULO. Note that all elements on the diagram are clicable and give additional information on the compentents, such as:

  • Material
  • Process
  • Related components
  • Applicable requirements

For people familiar to the Arcadia method, the model can be browsed by expanding the model tree in the navigation panel on the left of the window.

For more information on Arcadia method and uses Capella software.

Nota Bene: Installation of Capella is only required for people that needs to modify the model. The eVECTORS Capella model is also available for download on gitLab. To modify the eVECTORS Capella model, please follow the Capella installation instruction.
