System Architecture

!!! Re-upload picture, quality got degraded for some reason !!!

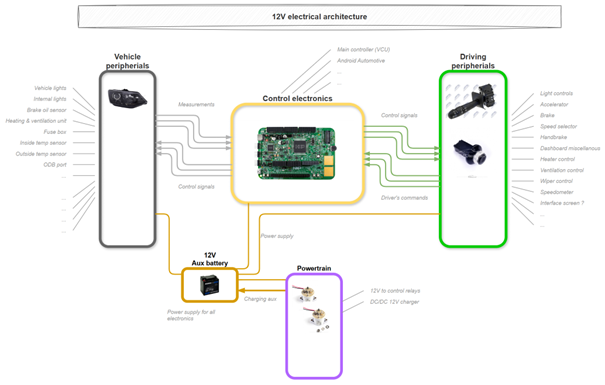

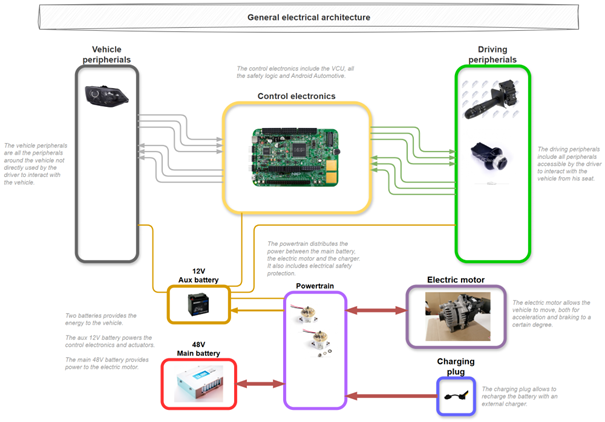

Simplified Architecture

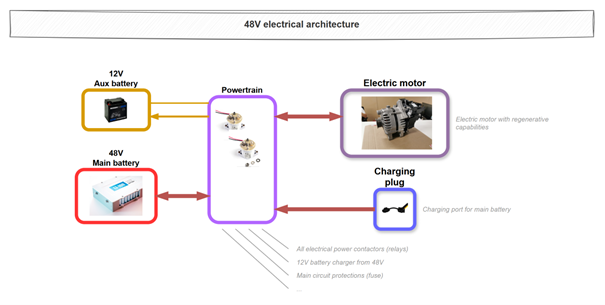

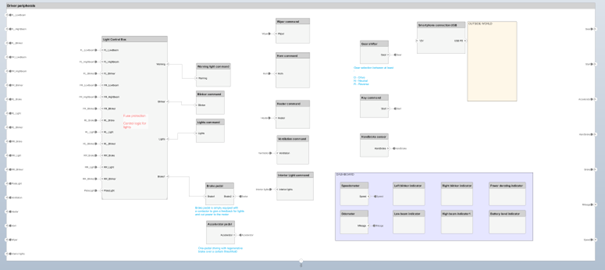

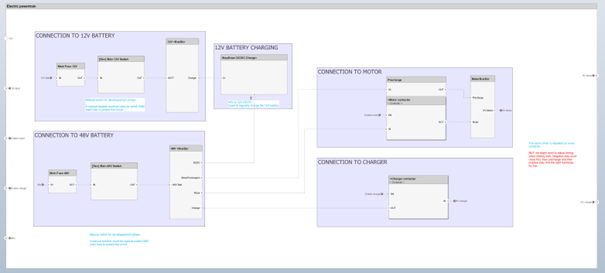

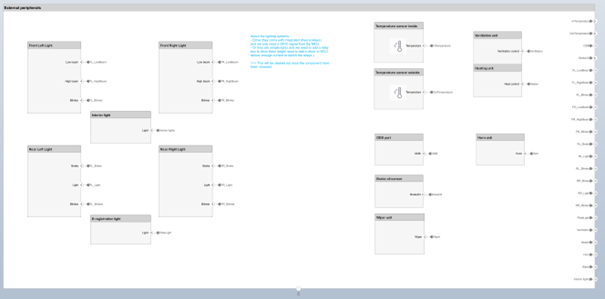

The simplified high-level architecture is presented below. It is composed of the following regions: - Control electronics: it includes all the processing units of the vehicle (VCU) - Vehicle peripherals: this regroups the peripherals around the vehicle such as headlights, thermal sensors, … that aren’t in direct contact with the driver - Driving peripherals: it includes all the peripherals used by the driver to control the vehicle, gear shift selector, headlight controls, … - Powertrain & others : the lower part of the architecture regroups all the high-power items such as the motor with the drive, the main battery, etc …
