Indicate the activation of the position lights

PhysicalFunction

eVectors > eVectors > Physical Architecture > Physical Functions > Root Physical Function > Indicate the activation of the position lights Continuous green symbol

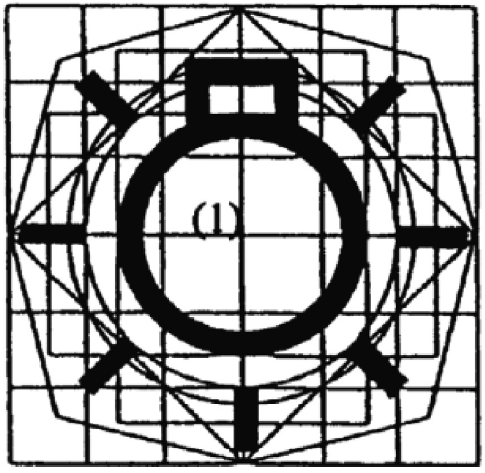

Warning light symbol :

Allocating Component

• Driving information dispensing

Incoming Functional Ports

• FIP 1

Incoming Functional Exchanges

Exchange	Involving functional chains	Allocating component Exchanges	Distant Port	Source	Description	Allocated Exchange Items	Realized Functional Exchange	Realizing Functional Exchange
position lights on/off			FOP 2	Control position lights and position lights indicator

Diagrams displaying "Indicate the activation of the position lights"

• [PDFB] Be visible
• [PAB] EVectors
