FunctionalChain

Energy management

FunctionalChain

eVectors > eVectors > Physical Architecture > Physical Functions > Root Physical Function > Energy management

No description.

Involved functions

FunctionInvolvement Description
PhysicalFunction Manage energy loading
PhysicalFunction Measure battery output (voltage and current)
PhysicalFunction Provide 230 V / AC electrical power
PhysicalFunction Convert the current coming from the charging station into DC current
PhysicalFunction Stock electrical energy
PhysicalFunction Compute vehicle's range
PhysicalFunction Indicate vehicle's range
PhysicalFunction Provide electrical energy
PhysicalFunction Heat/Cool the air
PhysicalFunction Produce accelerating torque
PhysicalFunction Produce decelerating torque
PhysicalFunction Modulate the power supply to reach the desired operating point
PhysicalFunction Produce electric current
PhysicalFunction Process the current to recharge the battery
PhysicalFunction Provide electrical energy (48 V / 250 A)
PhysicalFunction Provide electrical energy (12 V / 8 A)
PhysicalFunction Manage battery state measurements
PhysicalFunction Heat the air
PhysicalFunction Link control circuit and power circuit
PhysicalFunction Supply electrical energy to the ventilator
PhysicalFunction Connect all electrical subsystems to its power supply (12 V)

Involved functional exchanges

Functional ExchangeInvolvement Description
FunctionalExchange electrical energy
FunctionalExchange electrical energy
FunctionalExchange battery voltage/current
FunctionalExchange vehicle's range
FunctionalExchange autonomy estimation
FunctionalExchange electrical energy 48 V
FunctionalExchange electrical energy 48 V
FunctionalExchange electrical energy
FunctionalExchange decelerating torque
FunctionalExchange electric current
FunctionalExchange power supply
FunctionalExchange no power supply

Realized Elements

Owned diagrams

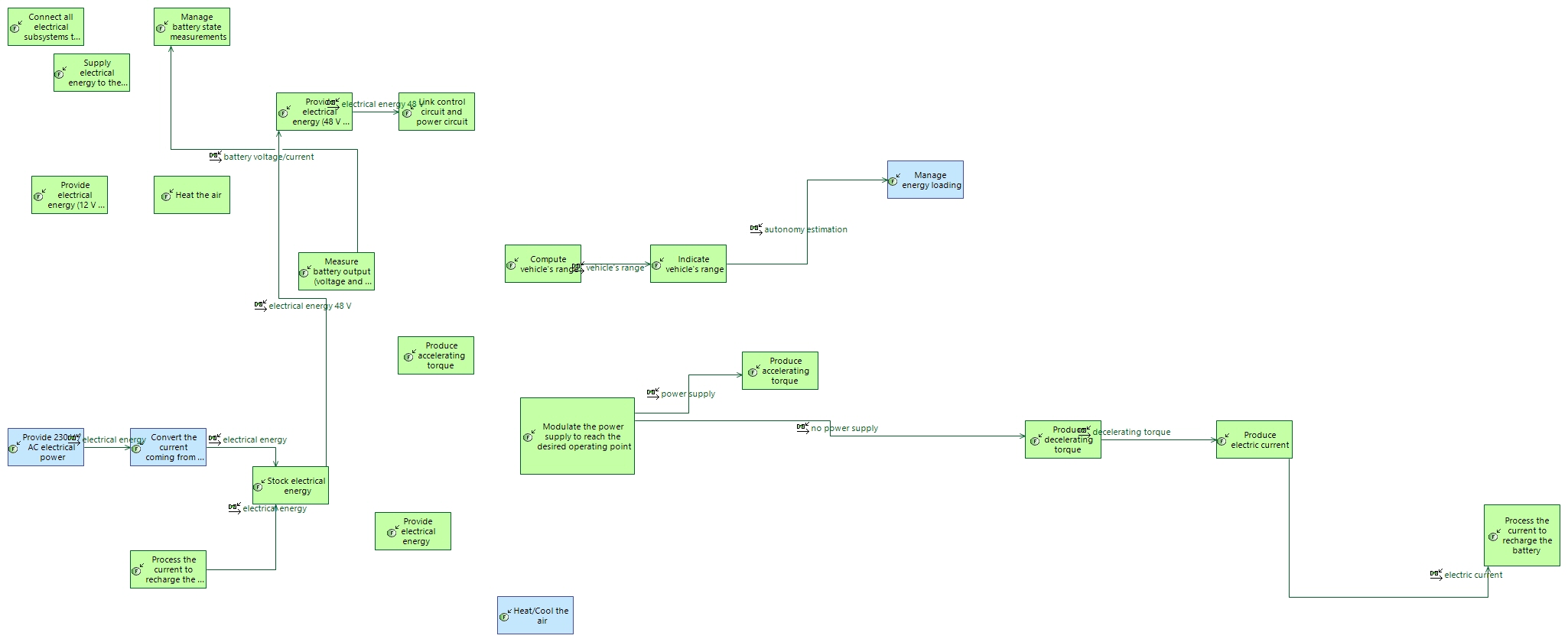

PFCD Energy management

PFCD Energy management
