Receive the command to activate the low beam

PhysicalFunction

eVectors > eVectors > Physical Architecture > Physical Functions > Root Physical Function > Receive the command to switch on/off the driving lights > Receive the command to activate the low beam

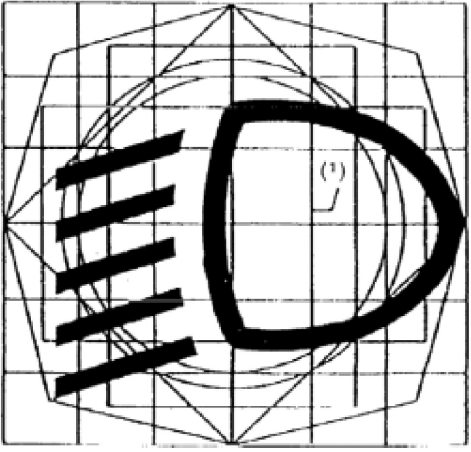

command symbol :

Allocating Component

• Driving lights control

Incoming Functional Ports

• FIP 1

Outgoing Functional Ports

• FOP 1

Incoming Functional Exchanges

Exchange	Involving functional chains	Allocating component Exchanges	Distant Port	Source	Description	Allocated Exchange Items	Realized Functional Exchange	Realizing Functional Exchange
low beam activation			FOP 1	Activate the low beam

Outgoing Functional Exchanges

Exchange	Involving functional chains	Allocating component Exchanges	Distant Port	Target	Description	Allocated Exchange Items	Realized Functional Exchange	Realizing Functional Exchange
low beam activation			FIP 1	Control the low beam

Diagrams displaying "Receive the command to activate the low beam"

• [PDFB] Provide maneuvrability
• [PAB] EVectors
